结构及用途 Structure and purpose
该阀用于空调系统供/回水之间以平衡压差的阀门，可提高系统的利用率，保持压差的准确恒定值，并可最大限度地降低系统的噪音，以及过大压差对设备造成的损坏。该阀优越于其它平衡阀，它不需其它执行机械，完全靠介质自身的压力差来达到系统平衡之功能，节约能源及安装场地空间。
A valve used between water supply/back of an air conditioning system order to balance the pressure differential and able to raise the system＇s utility．keep the pressure differential at an accurately constant value and to lower ths system＇s noise and the damage to the equipment due to an extra-big pressure differential to the utmost extent．1t is superior to the other balancing valves，needs no other execution machinery.gets the system balanced completely depend-ing on the pressure differential of the medium＇s own and saves energy and the installation space．

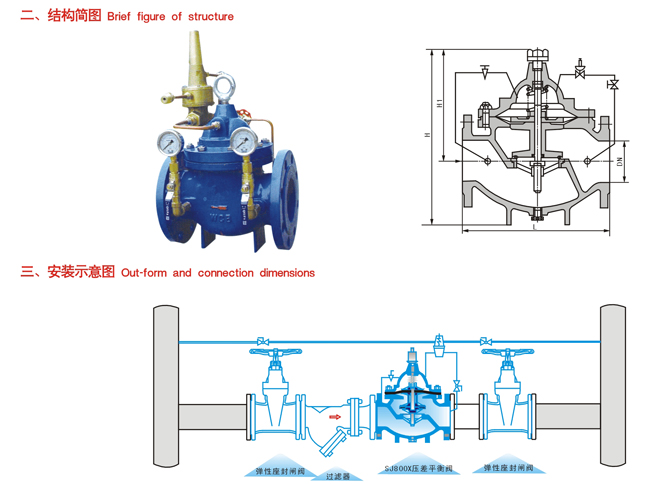

主要外形及连接尺寸 Schematic diagram of installation
| 公称通径 DN(mm) |
20 |
25 |
32 |
40 |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
| L |
180 |
180 |
180 |
203 |
203 |
216 |
241 |
292 |
330 |
356 |
495 |
622 |
698 |
787 |
914 |
978 |
978 |
| PN10 |
D |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
215 |
245 |
280 |
335 |
390 |
440 |
500 |
565 |
615 |
670 |
| D1 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
350 |
400 |
460 |
515 |
565 |
620 |
| PN16 |
D |
105 |
115 |
135 |
145 |
160 |
180 |
195 |
215 |
245 |
280 |
335 |
405 |
460 |
520 |
580 |
640 |
705 |
| D1 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
180 |
210 |
240 |
295 |
355 |
410 |
470 |
525 |
585 |
650 |
| PN25 |
D |
105 |
110 |
135 |
145 |
160 |
180 |
195 |
230 |
270 |
300 |
360 |
425 |
485 |
550 |
610 |
660 |
730 |
| D1 |
75 |
85 |
100 |
110 |
125 |
145 |
160 |
190 |
220 |
250 |
310 |
370 |
430 |
490 |
550 |
600 |
660 |
| H |
550 |
560 |
575 |
590 |
610 |
625 |
642 |
750 |
808 |
864 |
1135 |
1185 |
1325 |
1385 |
1445 |
1545 |
1720 |
| H1 |
125 |
130 |
135 |
145 |
160 |
180 |
200 |
270 |
310 |
320 |
370 |
430 |
480 |
525 |
580 |
635 |
705 |
注：安装示意图中弹性座封闸阀或蝶阀任选，建议≥ DN350选蝶阀。
Note:Either elastic seat ring sealed gate valve or butterfly valve car be selected in the schematic diagram of installation.Recommended to select the butterfly valve un case of ≥ DN350
