美标高压铸钢闸阀-精嘉阀门集团

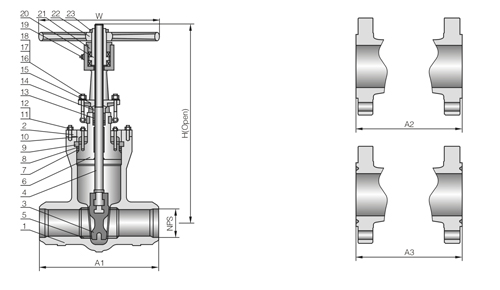

No.	Part Name	ASTM Material
No.	Part Name	Carbon Steel	1.25Cr-0.5Mo	2.25Cr-1Mo	304 Type	316 Type	304L Type	316L Type	20 Alloy
1	Body	A216 WCB	A217WC6	A217 WC9	A351CF8	A351CF8M	A351CF3	A351 CF3M	A351 CN7M
2	Yoke	A216 WCB	A217WC6	A217 WC9	A351CF8	A351CF8M	A351CF3	A351 CF3M	A351 CN7M
3	Wedge	WCB+HF	A217 WC6+HF	A217 WC9+H F	A351 CF8	A351CF8M	A351CF3	A351 CF3M	A351 CN7M
4	Stem	A182 F6a	A182 F11	A182 F22	A182? F304	A182? F316	A182 F304L	A182 F316L	20-Alloy
5	Seat Ring	A105+HF	A182 F11+HF	A182 F22+HF	NA	NA	NA	NA	NA
6	Bonnet	A216 WCB	A217WC6	A217 WC9	A351CF8	A351CF8M	A351CF3	A351 CF3M	A351 CN7M
7	Bonnet Gasket	304+ Graphite	304+ Graphite	304+ Graphite	304+ Graphite	316+ Graphite	304L+ Graphite	316L+ Graphite	316+ Graphite
8	Adapter Ring	Soft steel	A182 F6a	A182 F6a	A182 F304	A182 F316	A182 F304L	A182 F316L	20-Alloy
9	Retainer	A182 F6a	A182 F6a	A182 F6a	A182 F304	A182 F304	A182 F304	A182 F304	A182 F304
10	Yoke Cap	A216 WCB	A217WC6	A217 WC9	A351CF8	A351CF8	A351CF8	A351CF8	A351CF8
11	Bonnet Bolt	A193 B7	A193 B7	A193 B16	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
12	Bonnet Nut	A194 2H	A194 7	A194 7	A194 8	A194 8	A194 8	A194 8	A194 8
13	Packing	Graphite	Graphite	Graphite	Graphite	Graphite	Graphite	Graphite	Graphite
14	Gland	A276 410	A276 410	A276 410	A276 304	A276 316	A276 304L	A276 316L	20-Alloy
15	Gland Flange	A216 WCB	A216WCB	A216WCB	A351CF8	A351CF8	A351CF8	A351CF8	A351CF8
16	Eyebolt	Carbon steel	A193 B7	A193 B7	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
17	Eyebolt Nut	Carbon steel	A194 2H	A194 2H	A194 8	A194 8	A194 8	A194 8	A194 8
18	Eyebolt Pin	A276 410	A276 411	A276 412	A276 304	A276 304	A276 304	A276 304	A276 304
19	Greas Fitting	Commercial	Commercial	Commercial	Commercial	Commercial	Commercial	Commercial	Commercial
20	Stem Nut	Bronze	Bronze "1	Bronze "1	Bronze	Bronze	Bronze	Bronze	Bronze
21	Jam Nut	Carbon steel	Carbon steel	Carbon steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
22	Hand Wheel	Malleable iron	Malleable iron	Malleable iron	Malleable iron	Malleable iron	Malleable iron	Malleable iron	Malleable iron
23	Wheel Nut	Carbon steel	Carbon steel	Carbon steel	Carbon steel+Zn	Carbon steel+Zn	Carbon steel+Zn	Carbon steel+Zn	Carbon steel+Zn
*1	Ductile Ni-Resist iron Optional
NA	Integral with vessell

主要外观尺寸和重量?Class 600

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16	18	20	24
Valve Size		mm	50	65	80	100	150	200	250	300	350	400	450	500	600
A1		in	7.0	8.5	10.0	12.0	18.0	23.0	28.0	32.0	35.0	39.0	43.0	47.0	55.0
A1		mm	178	216	254	305	457	584	711	813	889	991	1092	1194	1397
A2		in	11.5	13.0	14.0	17.0	22 0	26.0	31.0	33.0	35.0	39.0	43.0	47.0	55.0
A2		mm	292	330	356	432	556	660	787	838	889	991	1092	1194	1397
A3		in	11.62	13.12	14.12	17.12	22 12	26.12	31.12	33.12	35.12	39.12	43.12	47.25	55.38
A3		mm	295	333	359	435	562	664	791	841	892	994	1095	1200	1406
H		in	23.2	24.8	26.3	36.0	42.5	49.9	59.5	70.5	73.1	85.1	88.6	97.2	118.1
H		mm	590	629	667	914	1080	1267	1511	1791	1857	2162	2251	2470	3000
W		in	7.9	9.8	9.8	11.8	19.7	22.0	27.2	35.8	24.0	24.0	24.0	24.0	30.0
W		mm	200	250	250	300	500	560	690	610	610	610	610	610	760
Weight	RF	ib	154.4	209.5	220.5	326.3	540.2	705.6	948.2	1135.6	1477.4	1995.5	2535.8	3186.2	4586.4
	RF	kg	70	195	100	148	245	320	430	515	670	905	1150	1445	2080
	BW	ib	136.7	176.4	165.2	253.6	377.1	474.1	590.9	701.2	959.2	1256.9	1587.6	1962.5	2833.4
	BW	kg	62	80	84	115	171	215	268	318	435	570	720	890	1285

主要外观尺寸和重量?Class 900

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16	18	20	24
Valve Size		mm	50	65	80	100	150	200	250	300	350	400	450	500	600
A1		in	8.5	10.0	12.0	14.0	20.0	26.0	31.0	36.0	39.0	43.0	46.5	50.0	59.5
A1		mm	216	254	305	356	508	660	787	914	991	1092	1181	1283	1511
A2		in	14.5	16.5	15.0	18.0	24.0	29.0	33.0	38.0	40.5	44.5	48.0	52.0	61.0
A2		mm	368	419	381	457	610	737	838	965	1029	1130	1219	1321	1549
A3		in	14.62	16.62	15.12	18.12	24.12	29.12	33.12	38.12	40.88	44.88	48.5	52.5	61.75
A3		mm	371	422	384	460	612	740	841	968	1038	1140	1232	1333	1568
H		in	23.4	29.6	29.8	34.0	39.9	50.2	60.7	70.1	79.8	89.0	97.2	108.3	1276
H		mm	594	753	756	864	1013	1276	1543	1781	2026	2261	2470	2750	3242
W		in	11.8	17.7	17.7	19.7	22 0	18.1	24.0	24.0	24.0	24.0	29 9	29.9	24.0
W		mm	300	450	450	500	560	460	610	610	610	610	760	760	610
Weight	RF	ib	132.3	207.3	224.9	330.8	617.4	1455.3	2116.8	2976.8	3748.5	5292	7320.6	9702.0	14927.9
	RF	kg	60	94	102	150	280	660	960	1350	1700	2400	3320	4400	6770
	BW	ib	88.2	141.1	176.4	220.5	407.9	1091.5	1620.7	2315.3	3087.0	4299.8	6019.7	8125.4	11973.2
	BW	kg	40	64	80	100	185	495	735	1050	1400	1950	2730	3685	5430

主要外观尺寸和重量Class 1500

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16	18	20	24
Valve Size		mm	50	65	80	100	150	200	250	300	350	400	450	500	600
A1		in	8.5	10.0	12.0	16.0	22 0	28.0	34.0	39.0	42.0	47.0	53.0	58.0	64.0
A1		mm	216	254	305	406	559	711	864	991	1067	1194	1346	1473	1626
A2		in	14.5	16.5	18.5	21.5	27.75	32.75	39.0	44.5	49.5	54.5	60.5	65.5	76.5
A2		mm	368	419	470	546	705	832	991	1130	1257	1384	1536	1664	1943
A3		in	14.62	16.62	18.62	21.62	28.0	33.13	39.38	45.12	50.25	55.38	61.38	66.38	77.62
A3		mm	371	422	473	549	711	841	1000	1146	1276	1406	1559	1686	1972
H		in	23.4	29.6	29.6	34.0	48.0	51.6	64.8	77.8	87.2	91.8	111.1	122.1	148.3
H		mm	594	753	753	864	1219	1311	1645	1975	2216	2331	2823	3102	3766
W		in	11.8	17.7	17.7	19.7	24.0	24.0	24.0	24.0	29.9	29.9	29 9	24.0	24.0
W		mm	300	450	450	500	610	610	610	610	760	760	760	610	610
Weight	RF	ib	132.3	207.3	264.6	458.6	1058.4	2006.6	3109.1	4586.4	5755.1	7938	13141.8	16250.9	23395.1
	RF	kg	60	94	120	208	480	910	1410	2080	2610	3600	5960	7370	10610
	BW	ib	88.2	141.1	176.4	326.3	749.7	1499.4	2249.1	3197.3	3969	6063.8	10209.2	12612.6	18169.2
	BW	kg	40	64	80	148	340	680	1020	1450	1800	2750	4630	5720	8240

主要外观尺寸和重量?Class 2500

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16	18
Valve Size		mm	50	65	80	100	150	200	250	300	350	400	450
A1		in	11.0	13.0	14.5	18.0	24.0	30.0	36.0	41.0	44.0	49.0	55.0
A1		mm	279	330	368	457	610	762	914	1041	1118	1245	1397
A2		in	17.75	20.0	22 75	26.5	36.0	40.25	50.0	56.0	-	-	-
A2		mm	451	508	578	673	914	1022	1270	1422	-	-	-
A3		in	17.87	20.25	23.0	26.88	36.5	40.87	50.88	56.88	-	-	-
A3		mm	454	514	584	683	927	1038	1292	1445	-	-	-
H		in	23.4	29.6	29.6	34.3	47.3	57.1	63.4	82.5	90.2	97.2	116.1
H		mm	594	753	753	870	1201	1451	1610	2096	2291	2470	2950
W		in	14.0	17.7	19.7	23.6	24.0	24.0	24.0	29.9	29 9	24.0	24.0
W		mm	355	450	500	600	610	610	610	760	760	610	610
Weight	RF	ib	172.1	273.4	334.1	702.7	1640.3	2673	4807.4	6925.5	-	-	-
	RF	kg	85	135	165	347	810	1320	2374	3420	-	-	-
	BW	ib	101.3	182.3	192.4	384.8	1053	1498.5	3240	6075	6885	8505	10125
	BW	kg	50	90	95	190	520	740	1600	300	3400	4200	5000
