JINGJIA cast steel globe valve are designed and manufactured to provide maximum service life and dependability. All globe valves are full ported and meet the design requirements of American Petroleum Institute Standard API 600 & API 6D, BS EN 13709 and generally conform to American Society complete range of body/bonnet materials and trims.

Rang of Materials

Standard body/bonnet materials include nine grades of carbon, low alloy and stainless steels, For special apolications they can be supplied in other grades of alloy and stainless steell, There′s′a full range of trim materials to match any service. Optional packing and gasket materials are available for a full range of service conditions.

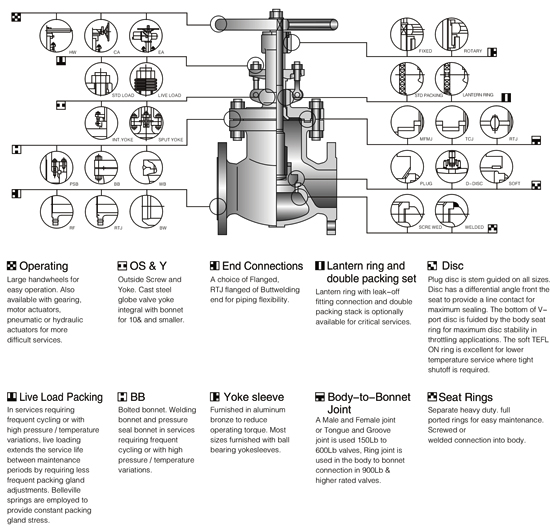

Available Modifications for JINGJIA Cast Steel Valves

* Trim Changes
* End Connection Modifications
* Packing and Gasket Changes
* Operator Mounting
* Handwheel Extensions
* Pressure Equalizing
* By-pass
* Customer Specified Coatings
* Weld End Bore Changes
* Oxygen & Chlorine Cleaning & Packaging

Standard Material Specifiactions

NO.	Part Name	ASTM Material
NO.	Part Name	Carbon steel	1.25Cr-0.5Mo	2.25Cr-1Mo	304 Type	316 Type	304L Type	316L Type	20 Alloy
1	Body	A216 WCB?	A217 WC6	A217 WC9	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
2	Bonnet	A216 WCB	A217 WC6	A217 WC9	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
3	Disc	WCB+13Cr *1	A217 WC6+HF	A217 WC9+HF	A351 CF8	A351 CF8M	A351 CF3	A351 CF3M	A351 CN7M
4	Stem	A182 F6a	A182 F11	A182 F22	A182 F304	A182 F316	A182 F304L	A182 F316L	20-Alloy
5	Seat Ring	A105+13Cr *1	A182 F11+HF	A182 F22+HF	NA				NA
6	Back Seat	A276 410	A276 410	A276 410	NA				NA
7A	Bonnet Gasket	304+graphite	304+graphite	304+graphite	304+graphite	316+graphite	304L+graphite	316L+graphite	316+graphite
7B	Ring Gasket	Soft steel	A182 F304	A182 F304	A182 F304	A182 F316	A182 F304L	A182 F316L	20/Alloy
8	Bonnet Bolt	A193 B7	A193 B7	A193 B16	A193 B8	A193 B8M	A193 B8	A193 B8M	A193 B8M
9	Bonnet Nut	A194 2H	A194 7	A194 7	A194 8	A194 8M	A194 8	A194 8M	A194 8M
10	Packing	Graphite	Graphite	Graphite	Graphite *2	Graphite *2	Graphite *2	Graphite *2	Graphite *2
11	Gland	A276 410	A276 410	A276 410	A276 304	A276 316	A276 304L	A276 316L	20/Alloy
12	Gland Flange	A216 WCB	?	?	A351 CF8	A351 CF8	A351 CF8	A351 CF8	A351 CF8
13	Eyebolt	Carbon steel	A193 B7	A193 B7	A193 B8	A193 B8	A193 B8	A193 B8	A193 B8
14	Eyebolt Nut	Carbon steel	A194 2H	A194 2H	A194 8	A194 8	A194 8	A194 8	A194 8
15	Eyebolt Pin	A276 410	A276 410	A276 410	A276 304	A276 304	A276 304	A276 304	A276 304
16	Yoke Sleeve	Bronze	Bronze *3	Bronze *3	Bronze				Bronze
17	Hand Wheel	Malleable iron			Malleable iron				Malleable iron
18	Wheel Nut	Carbon steel			Stainless steel				Stainless steel
*1	PN≥600 CLASS seal face will be HF
*2	PTFE Optional
*3	Ductile Ni-Resist iron Optional
NA	tegral with vessell

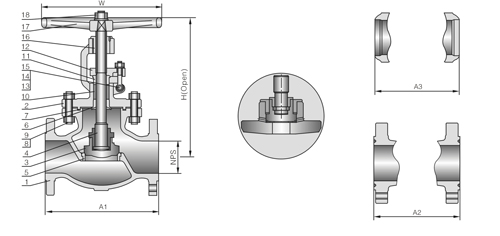

主要外观尺寸和重量?Class 150/10K

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16	18
Valve Size		mm	50	65	80	100	150	200	250	300	350	400	450
A1&A3		in	8.0	8.5	9.5	11.5	16.0	19.5	24.5	27.5	31.0	36.0	38.5
A1&A3		mm	203	216	241	292	406	495	622	698	787	914	978
H		in	15.3	14.8	17.0	19.5	22.6	28.0	31.4	39.1	54.6	53.4	78.0
H		mm	383	376	433	495	574	710	797	992	1387	1356	1980
W		in	7.9	8.8	8.8	9.8	14.0	14.0	17.7	17.7	22.0	220	240
W		mm	200	224	224	250	355	355	450	450	560	560	610
Weight	RF	ib	44.1	77.2	88.2	123.5	229.3	401.3	650.5	904	1510	1985	39690
	RF	kg	20	35	40	56	104	182	295	410	685	900	1800
	BW	ib	33.1	66.2	70.6	90.4	183.0	330.8	496.1	728	1312	1764	3638.3
	BW	kg	15	30	32	41	83	150	225	330	595	800	1650

主要外观尺寸和重量Class 300/20K

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16
Valve Size		mm	50	65	80	100	150	200	250	300	350	400
A1&A3		in	10.5	11.5	12.5	140	17.5	220	24.5	28.0	39.0	42.0
A1&A3		mm	267	292	318	356	444	559	622	711	991	1067
A2		in	11.12	12.12	13.12	14.62	18.12	22.62	25.12	28.62	39.62	42.62
A2		mm	283	308	333	371	460	575	638	727	1006	1083
H		in	15.6	16.3	18.2	21.7	29.2	31.5	446	46.1	56.5	70.7
H		mm	396	415	462	550	741	300	1132	1172	1435	1797
W		in	7.9	8.8	9.8	140	17.7	22.0	220	28.0	28.0	31.5
W		mm	200	224	250	355	450	560	560	710	710	800
Weight	RF	ib	70.6	92.6	141.0	220.5	419.0	595.4	1163.7	2240	2546.8	3748.5
	RF	kg	32	42	64	100	190	270	530	1016	1155	1700
	BW	ib	66.2	66.2	105.89	194.0	328.5	441	970.2	1997.7	2216	3309.7
	BW	kg	30	30	48	88	149	200	440	906	1005	1501

主要外观尺寸和重量?600/40K

Valve? Size		in	2	2.5	3	4	6	8	10	12	14	16
Valve? Size		mm	50	65	80	100	150	200	250	300	350	400
A1&A3		in	11.5	13.0	14.0	17.0	22.0	26.0	31.0	33.0	35.0	39.0
A1&A3		mm	292	330	356	432	559	660	787	818	889	991
A2		in	11.62	13.12	14.12	17.12	22.12	26.12	31.12	33.12	35.12	39.12
A2		mm	295	333	359	435	562	664	792	841	892	994
H		in	16.0	19.8	19.9	22.4	29.9	51.8	59.5	69.9	70.9	76.0
H		mm	407	502	505	165	759	1315	1511	1775	1800	1930
W		in	8.8	9.8	11.0	14.0	17.7	28.0	31.5	35.4	35.4	35.4
W		mm	224	250	280	355	450	710	800	900	900	900
Weight	RF	ib	94.8	154.4	172.0	300.0	619.6	1301	2099	3528	5953.5	7938.0
	RF	kg	43	70	78	136	281	590	952	1600	2700	3600
	BW	ib	72.8	121.3	132.3	216.1	454.2	1125	1746	3263.45	5534.6	7386.8
	BW	kg	33	55	60	98	206	510	792	1480	2510	3350

主要外观尺寸和重量Class 900

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16
Valve Size		mm	50	65	80	100	150	200	250	300	350	400
A1&A3		in	14.5	16.5	15.0	18.0	24.0	29.0	33.0	38.0	40.5	44.5
A1&A3		mm	368	419	381	457	610	737	838	965	1029	1130
A2		in	14.62	16.62	15.12	18.12	24.12	29.12	33.12	38.12	40.88	44.88
A2		mm	371	422	384	460	613	740	841	968	1038	1140
H		in	27.4	27.3	30.5	33.7	50.7	65.6	63.0	67.1	87.0	103.1
H		mm	695	695	77.5	855	1288	1665	1600	1705	2210	2620
W		in	15.7	15.7	15.7	15.7	22.0	31.5	31.5	35.4	35.4	35.4
W		mm	400	400	400	400	560	800	800	900	900	900
Weight	RF	ib	271.2	341.8	231.5	441	1101.5	2756.3	4520.3	5843.3	8048.3	9481.5
	RF	kg	123	155	105	200	500	1250	2050	2650	3650	4300
	BW	ib	205.1	264.6	196.2	335.2	903.2	2425.5	4123.4	5292.0	7386.8	8600.0
	BW	kg	93	120	89	152	410	1100	1870	2400	3350	3900

主要外观尺寸和重量Class 1500

Valve Size		in	2	2.5	3	4	6	8	10	12	14	16
Valve Size		mm	50	65	80	100	150	200	250	300	350	400
A1&A3		in	14.5	16.5	18.5	21.5	27.75	32.75	39.0	44.5	49.5	54.5
A1&A3		mm	368	419	470	546	705	832	991	1130	1257	1384
A2		in	14.62	16.62	18.62	21.62	28.0	33.13	39.38	45.12	50.25	55.38
A2		mm	371	422	473	549	711	841	1000	1146	1276	1407
H		in	27.4	27.3	31.5	40.0	53.0	77.2	91.0	105.1	126.0	160.0
H		mm	695	695	799	1015	1345	1960	2310	2670	3200	4064
W		in	15.7	15.7	19.7	19.7	28.0	28.0	30.0	30.0	30.0	30.0
W		mm	400	400	500	500	710	710	760	760	760	760
Weight	RF	ib	271.2	341.8	396.9	749.7	1482	4630.5	7056.0	9702.0	11907.0	14773.5
	RF	kg	123	155	180	340	672	2100	3200	4400	5400	6700
	BW	ib	205.1	264.6	297.7	621.8	12171	4190.0	6174.0	8379.0	10363.5	12789.0
	BW	kg	93	120	135	282	552	1900	2800	3800	4700	5800

主要外观尺寸和重量Class 2500

Valve Size		in	2	2.5	3	4	6	8	10	12
Valve Size		mm	50	65	80	100	150	200	250	300
A1&A3		in	17.75	20.0	22.75	26.5	36.0	40.25	50.0	56.0
A1&A3		mm	451	508	578	673	914	1022	1270	1422
A2		in	17.87	20.25	23.0	26.88	36.5	40.87	50.88	56.88
A2		mm	454	514	584	683	927	10.38	1292	1445
H		in	28.3	31.5	34.8	50.0	75.0	97.0	110.2	138.0
H		mm	720	800	885	1260	1905	2465	2800	3505
W		in	15.7	19.7	19.7	24.0	24.0	30.0	30.0	30.0
W		mm	400	500	500	610	610	760	760	760
Weight	RF	ib	419.0	661.5	771.8	1852.2	5071.5	105840	14994.0	18742.5
	RF	kg	190	300	350	840	2300	4800	6800	8500
	BW	ib	352.8	529.2	617.4	1521.5	4410.0	9702.0	13230.0	16537.5
	BW	kg	160	240	280	690	2000	4400	6000	7500
