结构特点及用途 STRUCTURES CHARACTERISTICS AND USAGE
Y型过滤器与管道中阀门及其它主要设备配套使用，也可单独使用于管路中。管道中介质首先进入过滤器，通过滤网再进入连接阀门及管道中，而杂物则留于过滤桶内。
Y型过滤器是有结构先进阻力小，冲洗方便等特点。Y型拉杆伸缩过滤器由Y型过滤器及伸缩接头组成，通常安装在阀门及其它主要设备之进口端，便于清理杂物与安装拆卸，以保护阀类或设备及正常使用。
Y-type filter can be used with valve in a pipeline or other main equipments and can also be individually used in apipeline. The medium in a pipeline goes in to the filter first, then into the connecting valve and pipeline through the filter screen, while foreign matters are left in the filter barrel.
It features and advanced structure, small resistance easy to be rinsed etc., Y-type pull-rod stretching filter consists of Y-type filter and a stretching joint and is usually mounted on the inlet of a valve and other main equipments for the convenience to make up foreign matters, installation and removal and have valves or equipments normally work.
主要技术参数 MAIN TECHNIQUE NUMBER
| 公称压力Nominal pressurePN(MPa) |
壳体试验压力Shell test pressure(MPa) |
工作压力Working pressure(MPa) |
阀体材料Body material |
滤网材料Sleve material |
适用介质Applicable medium |
| 1.0 |
1.5 |
1.0 |
灰铸铁Casting pig 不锈钢Stainiess steel |
不锈钢Stainless steel |
水?Water
气Air
油品Oil |
| 1.6 |
2.4 |
1.6 |
碳钢Carbon steel球墨铸铁Ductile lron?不锈钢Stainless steel |
| 2.5 |
3.75 |
2.5 |
碳钢Carbon steel球墨铸铁Ductile lron
不锈钢Stainless steel |

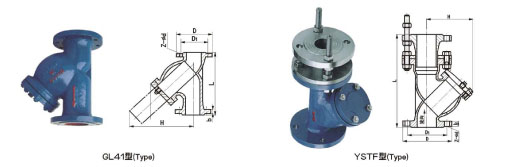

主要外形及连接尺寸MAIN EXTERNAL AND CONNECTING DIMENSIONS
一、结构特点及用途?STRUCTURES CHARACTERISTICS AND USAGE
Y型过滤器与管道中阀门及其它主要设备配套使用，也可单独使用于管路中。管道中介质首先进入过滤器，通过滤网再进入连接阀门及管道中，而杂物则留于过滤桶内。
Y型过滤器是有结构先进阻力小，冲洗方便等特点。Y型拉杆伸缩过滤器由Y型过滤器及伸缩接头组成，通常安装在阀门及其它主要设备之进口端，便于清理杂物与安装拆卸，以保护阀类或设备及正常使用。
Y-type filter can be used with valve in a pipeline or other main equipments and can also be individually used in apipeline. The medium in a pipeline goes in to the filter first, then into the connecting valve and pipeline through the filter screen, while foreign matters are left in the filter barrel.
It features and advanced structure, small resistance easy to be rinsed etc., Y-type pull-rod stretching filter consists of Y-type filter and a stretching joint and is usually mounted on the inlet of a valve and other main equipments for the convenience to make up foreign matters, installation and removal and have valves or equipments normally work.
二、主要技术参数?MAIN TECHNIQUE NUMBER
公称压力
Nominal pressure
PN(MPa) |
壳体试验压力
Shell test pressure
(MPa) |
工作压力
Working pressure
(MPa) |
阀体材料
Body material |
滤网材料
Sleve material |
适用介质
Applicable medium |
1.0 |
1.5 |
1.0 |
灰铸铁Casting pig不锈钢Stainiess steel |
不锈钢Stainless steel |
水?Water
气Air
油品Oil |
1.6 |
2.4 |
1.6 |
碳钢Carbon steel球墨铸铁Ductile lron?不锈钢Stainless steel |
2.5 |
3.75 |
2.5 |
碳钢Carbon steel球墨铸铁Ductile lron
不锈钢Stainless steel |
三、主要外形及连接尺寸MAIN EXTERNAL AND CONNECTING DIMENSIONS
公称通径
Nominal
Diameter
DN(mm) |
L |
D |
D1 |
b |
Z-?d |
H |
| SG41
GL41 |
YSTF |
PN
10 |
PN
16 |
PN
25 |
PN
10 |
PN
16 |
PN25 |
PN10 |
PN16 |
PN25 |
PN10 |
PN16 |
PN25 |
SG41
GL41 |
YSTF |
| 15 |
108 |
? |
95 |
95 |
95 |
65 |
65 |
65 |
14 |
14 |
14 |
4-14 |
4-14 |
4-14 |
103 |
? |
| 20 |
117 |
? |
105 |
105 |
105 |
75 |
75 |
75 |
16 |
16 |
16 |
4-14 |
4-14 |
4-14 |
127 |
? |
| 25 |
127 |
? |
115 |
115 |
115 |
85 |
85 |
85 |
16 |
16 |
16 |
4-14 |
4-14 |
4-14 |
137 |
? |
| 32 |
140 |
? |
135 |
135 |
140 |
100 |
100 |
100 |
18 |
18 |
18 |
4-18 |
4-18 |
4-18 |
148 |
? |
| 40 |
165 |
? |
145 |
145 |
150 |
110 |
110 |
110 |
18 |
18 |
18 |
4-18 |
4-18 |
4-18 |
168 |
? |
| 50 |
203 |
310 |
160 |
160 |
165 |
125 |
125 |
125 |
20 |
20 |
20 |
4-18 |
4-18 |
4-18 |
128 |
195 |
| 65 |
216 |
380 |
180 |
180 |
185 |
145 |
145 |
145 |
20 |
20 |
22 |
4-18 |
4-18 |
8-18 |
145 |
270 |
| 80 |
241 |
420 |
195 |
195 |
200 |
160 |
160 |
160 |
22 |
22 |
24 |
8-18 |
8-18 |
8-18 |
170 |
295 |
| 100 |
290 |
460 |
215 |
215 |
235 |
180 |
180 |
190 |
24 |
24 |
24 |
8-18 |
8-18 |
8-22 |
210 |
344 |
| 125 |
330 |
540 |
245 |
245 |
270 |
210 |
210 |
220 |
26 |
26 |
26 |
8-18 |
8-18 |
8-26 |
230 |
422 |
| 150 |
365 |
610 |
285 |
285 |
300 |
240 |
240 |
250 |
26 |
26 |
28 |
8-22 |
8-22 |
8-26 |
275 |
485 |
| 200 |
457 |
750 |
340 |
340 |
360 |
295 |
295 |
310 |
28 |
30 |
30 |
8-22 |
12-22 |
12-26 |
340 |
302 |
| 250 |
533 |
795 |
395 |
405 |
425 |
350 |
355 |
370 |
28 |
32 |
32 |
12-22 |
12-26 |
12-30 |
400 |
710 |
| 300 |
635 |
860 |
445 |
460 |
485 |
400 |
410 |
430 |
28 |
32 |
34 |
12-22 |
12-26 |
16-30 |
455 |
815 |
| 350 |
780 |
1025 |
500 |
520 |
555 |
460 |
470 |
490 |
30 |
36 |
38 |
16-22 |
16-26 |
16-33 |
844 |
844 |
| 400 |
850 |
1150 |
565 |
580 |
620 |
515 |
525 |
550 |
32 |
38 |
40 |
16-26 |
16-30 |
16-36 |
872 |
872 |
| 500 |
850 |
? |
670 |
715 |
730 |
620 |
650 |
660 |
34 |
42 |
44 |
20-26 |
20-33 |
16-36 |
978 |
? |
| 600 |
1000 |
? |
780 |
840 |
845 |
725 |
770 |
770 |
36 |
48 |
46 |
20-30 |
20-36 |
20-39 |
1080 |
? |
